SPECIFICATIONS

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

Item Weight: 2.65

Material: Plastic box + Copper wire

Origin: Mainland China

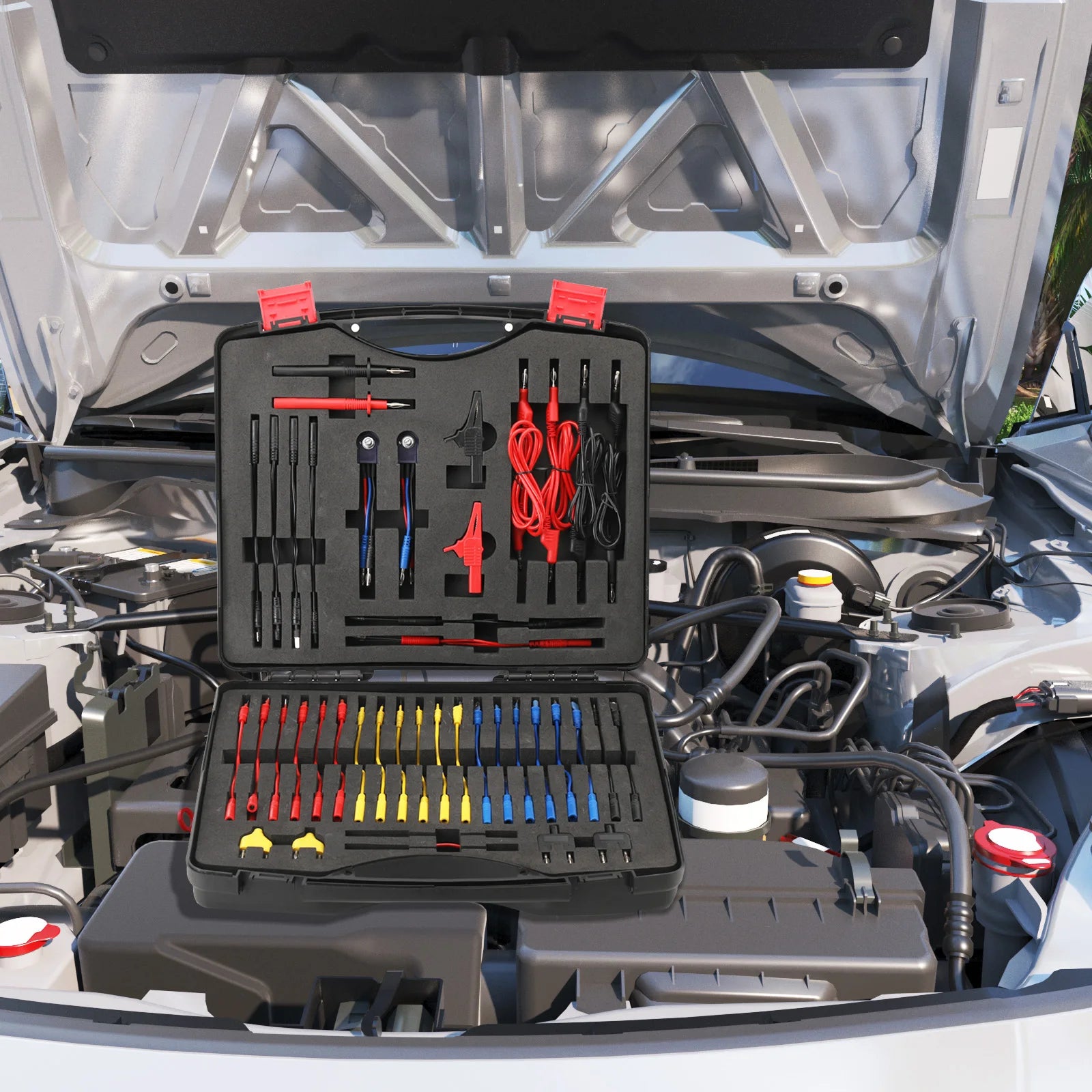

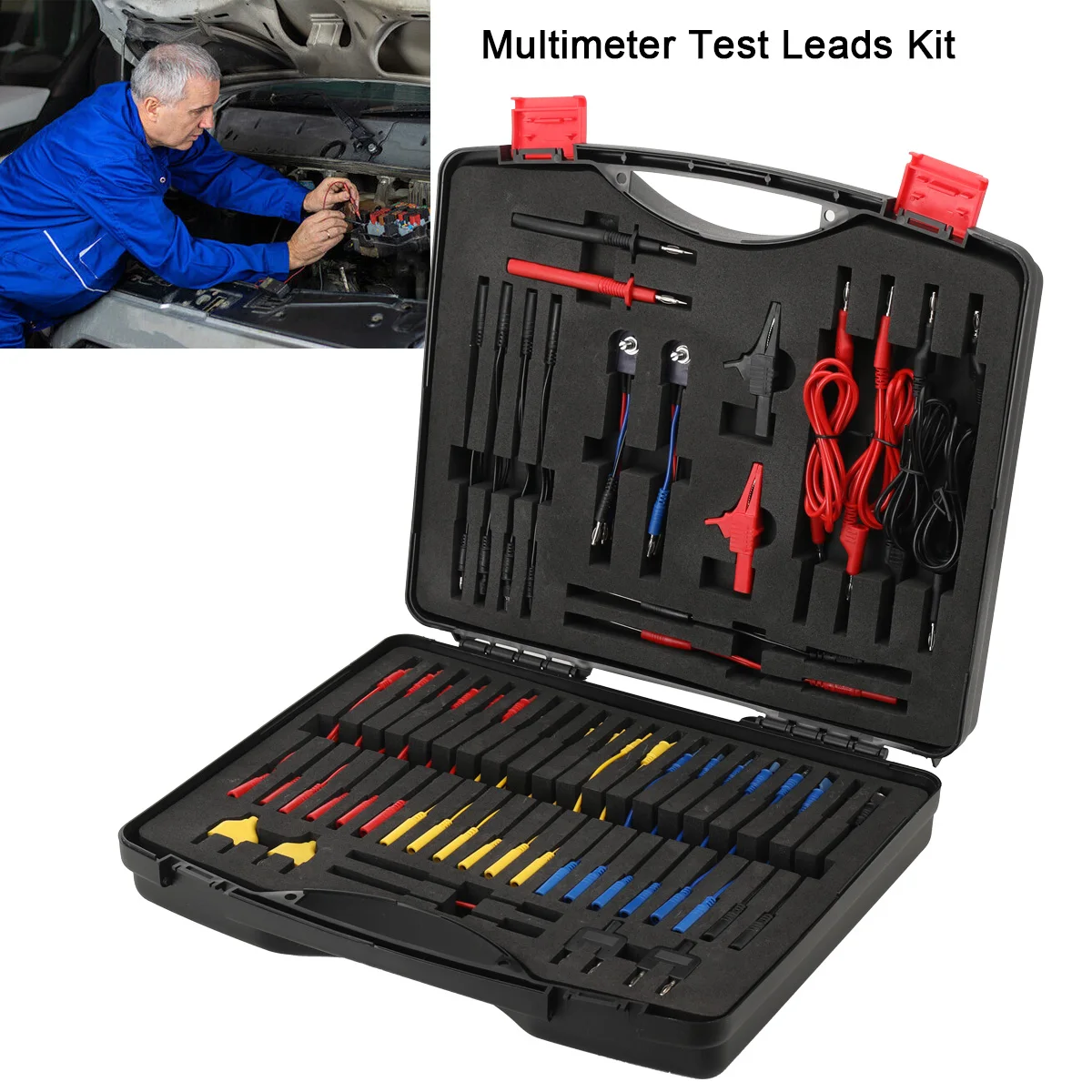

The universal circuit tester can be used with any multimeter and oscilloscope probe extension cable to make testing and inspection more convenient. The circuit test lead kit is a must-have for modern car mechanics and is suitable for a wide range of vehicles from all markets, including Europe, America and Japan.

The LED strobes are used to test voltage and ground signals, e.g. for Hall sensors, fuel injectors, solenoid valves, etc. The SRS connector is used for electrical simulation of belt tension generators. The 5KQ (variable resistance) potentiometer is used for components such as engine cooling systems, oil sensors and temperature testers.

The circuit test lead kit is designed to cover a wide range of tests to detect vehicle problems accurately and quickly. If you need to test parts, you can connect them directly to the back of the connector to avoid damaging the circuit. If you need to test the current, you don't need to cut the wires, just connect the lead to the circuit.

Features:
1.When measuring components, you can measure directly behind the wiring harness connector terminals without damaging the wiring, reducing the damage to the wiring insulation rubber, reducing the impedance caused by rusting of the wiring.
2.Suitable for any electrical measuring instrument, oscilloscope probe extension, reduce the trouble of wiring when checking wiring and help you test quickly.
3.When measuring current, there is no need to cut or disconnect the wires, and series connection can be achieved by connecting the wires of the wire set.
4.The variable resistor can simulate the hypothetical signal of the water temperature sensor and the throttle position sensor element to the computer, avoiding the risk of changing parts.
5.Equipped with two sets of LEDs to monitor the control signals of Hall, photoelectric signals, injectors, solenoid valves, automatic transmission shift solenoids and other actuating components.
6.SRS replacement resistor to simulate airbags and seatbelt pretensioners to prevent accidents and misjudgement during maintenance.
7.The various wire sets in the box can be used for various European and American and Asian car series connector terminals, high versatility and easy to use.

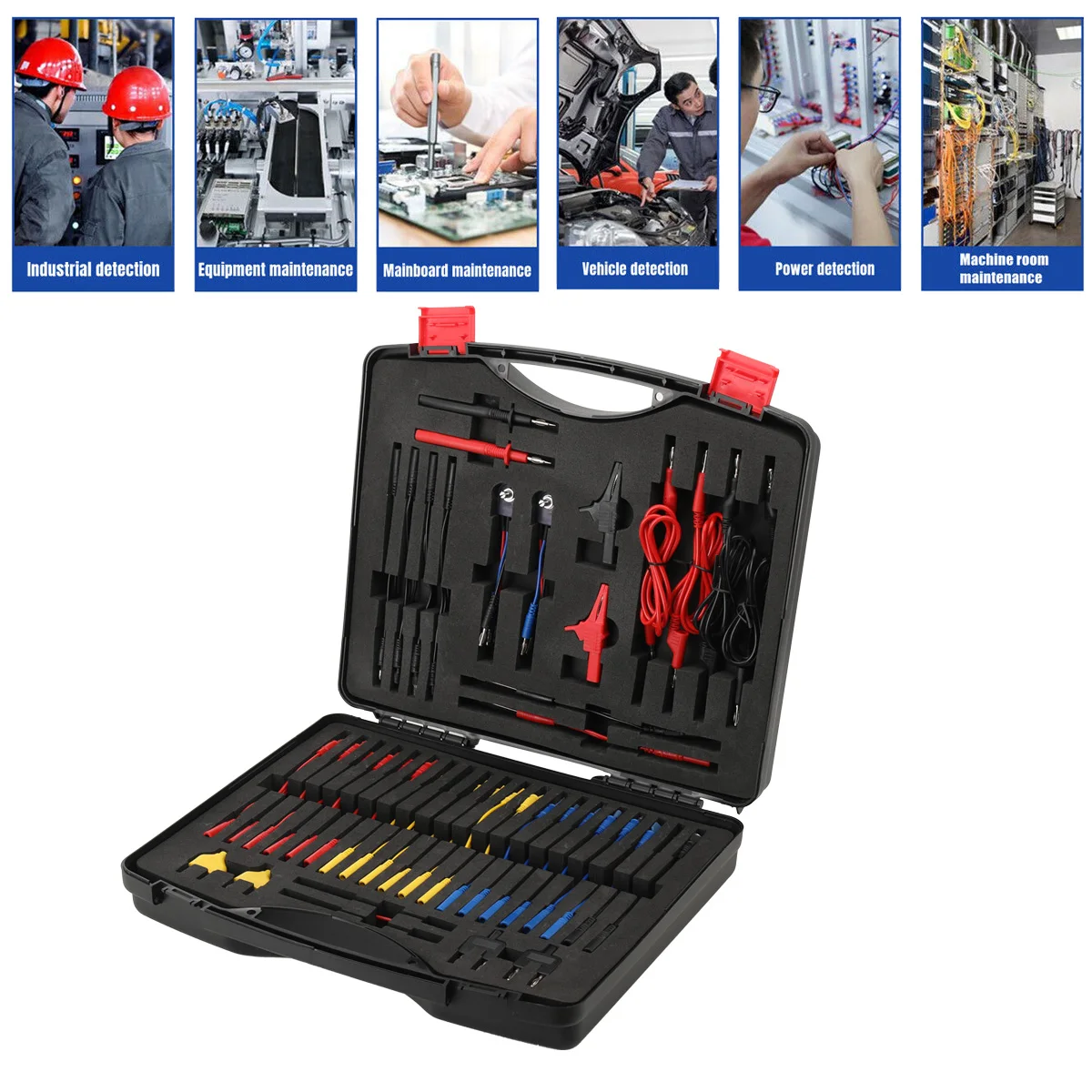

Used for diagnosing, testing and repairing complex vehicle circuits. They can also check sensors, actuators and electronic circuits. Professional test lead kits are suitable for 12-volt and 24-volt cars, RVs, trucks, ships, etc., and can also be used in laboratories, homes and industry.

Parameters:

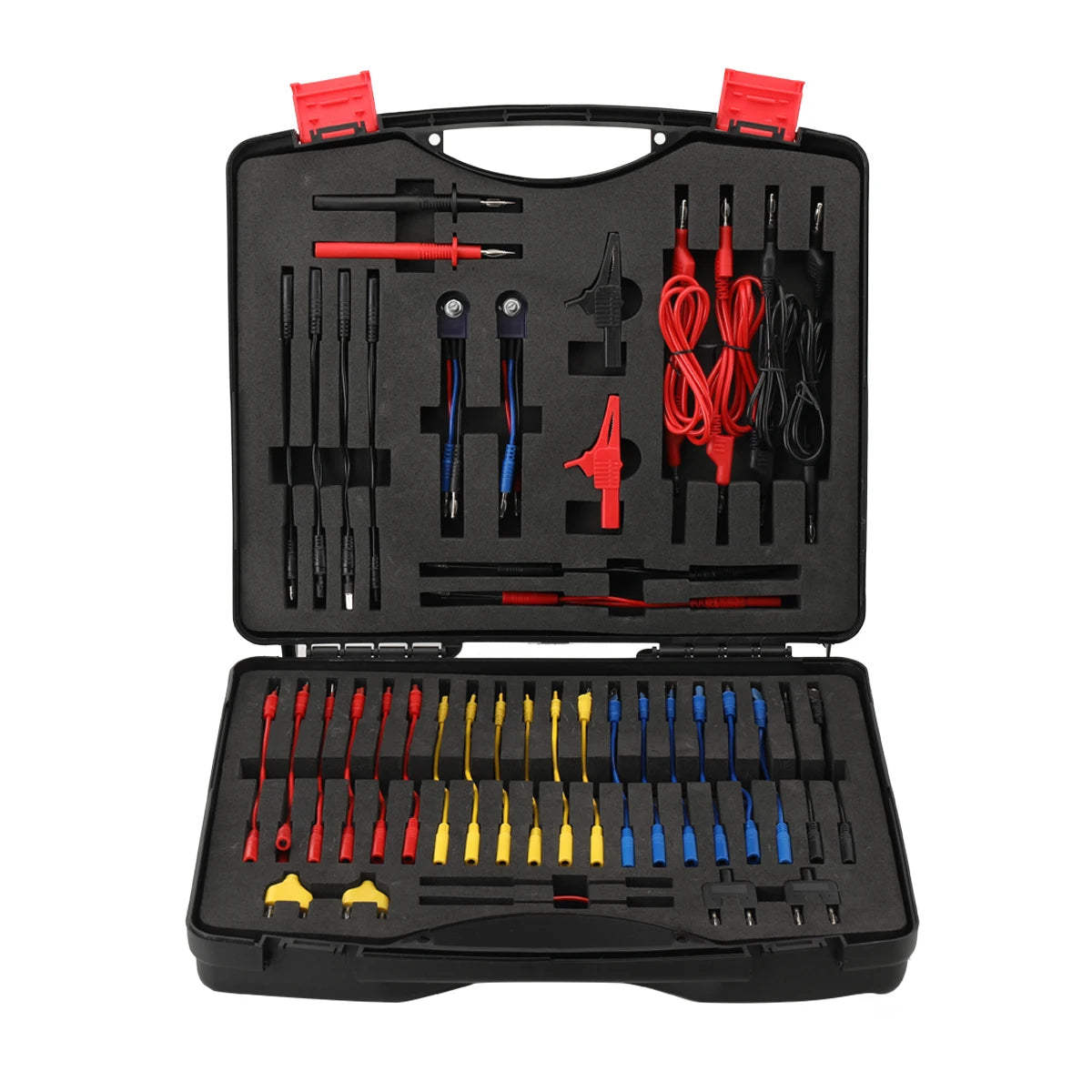

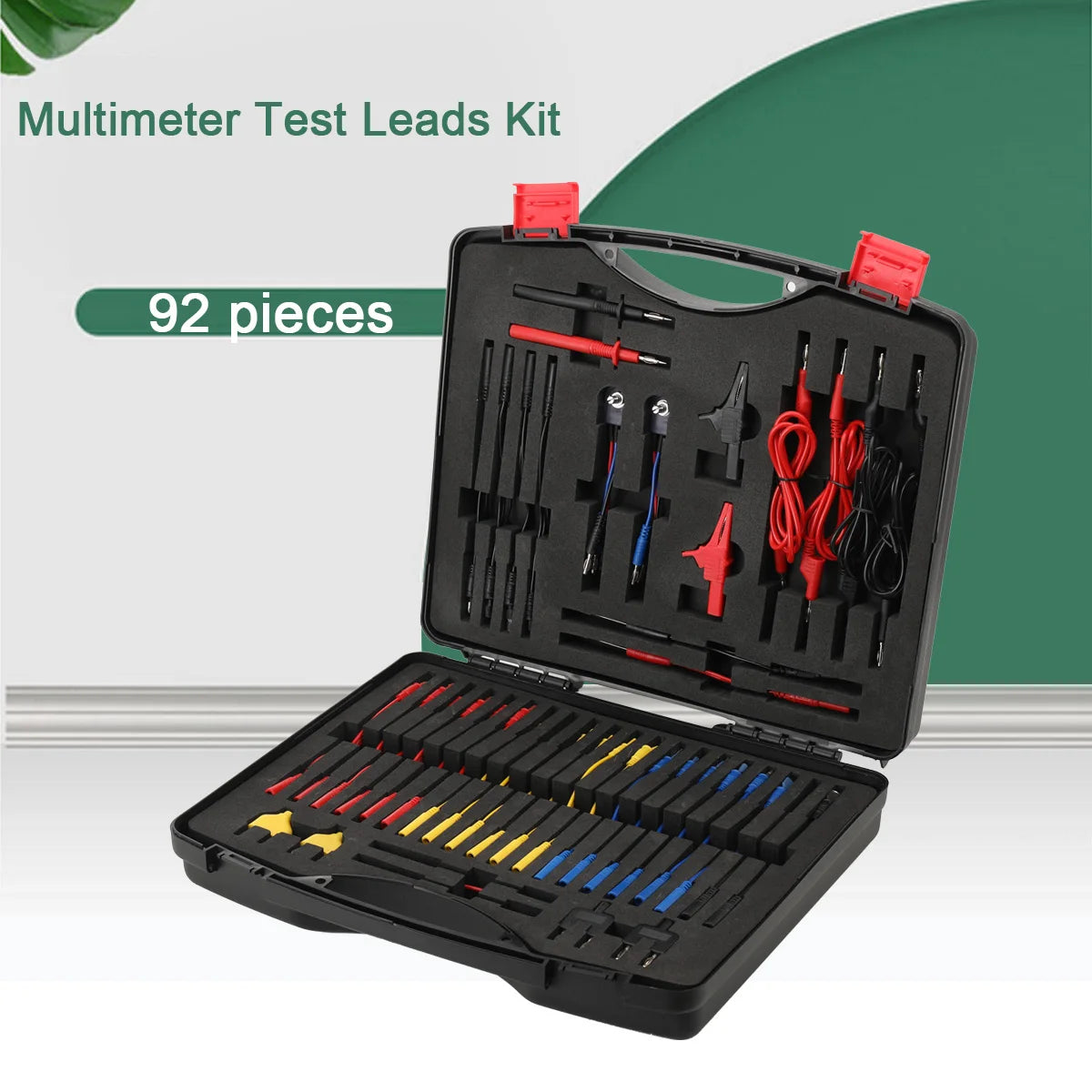

Number of accessories: 92 pieces
Colours: black +red + blue + yellow
Material: Plastic box + Copper wire

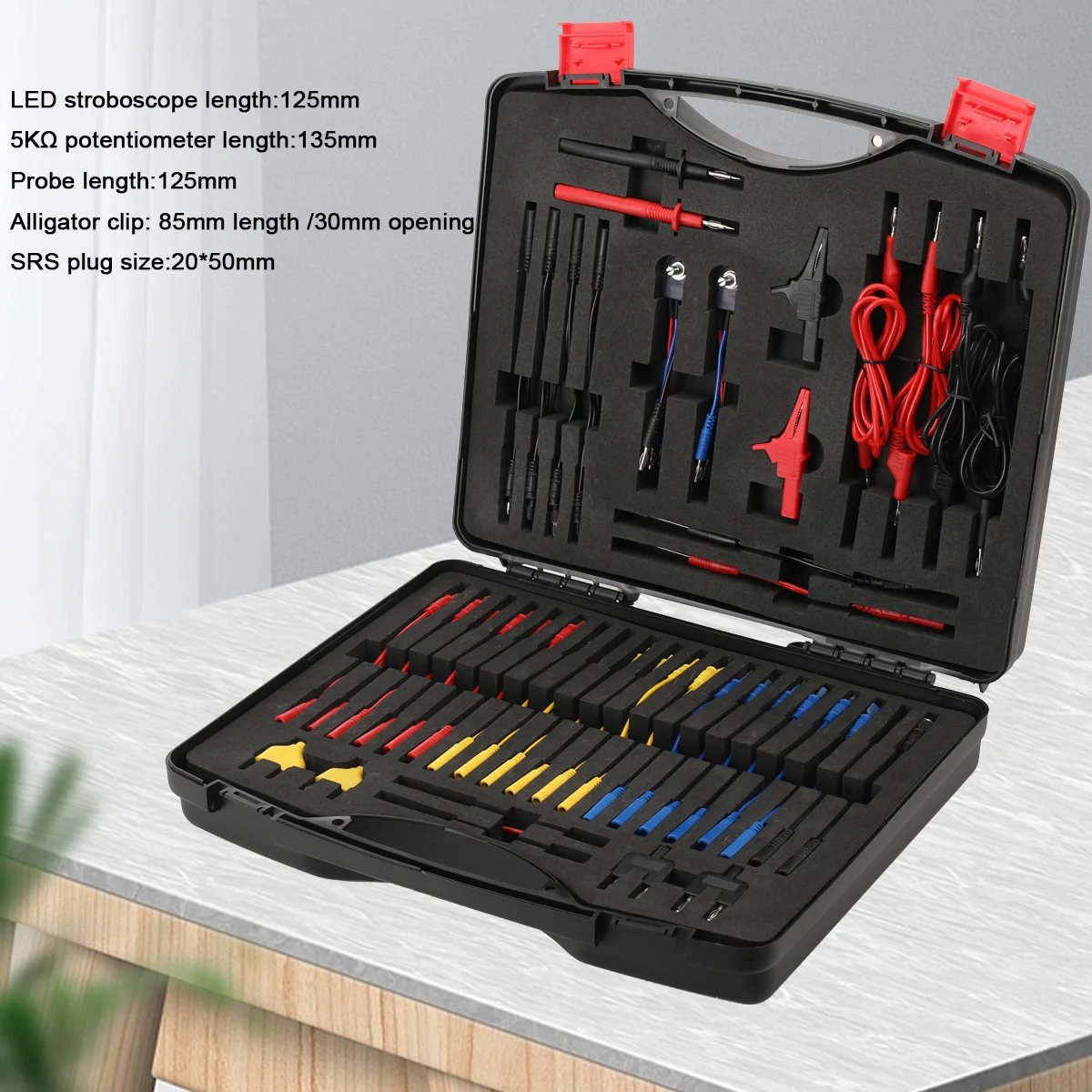

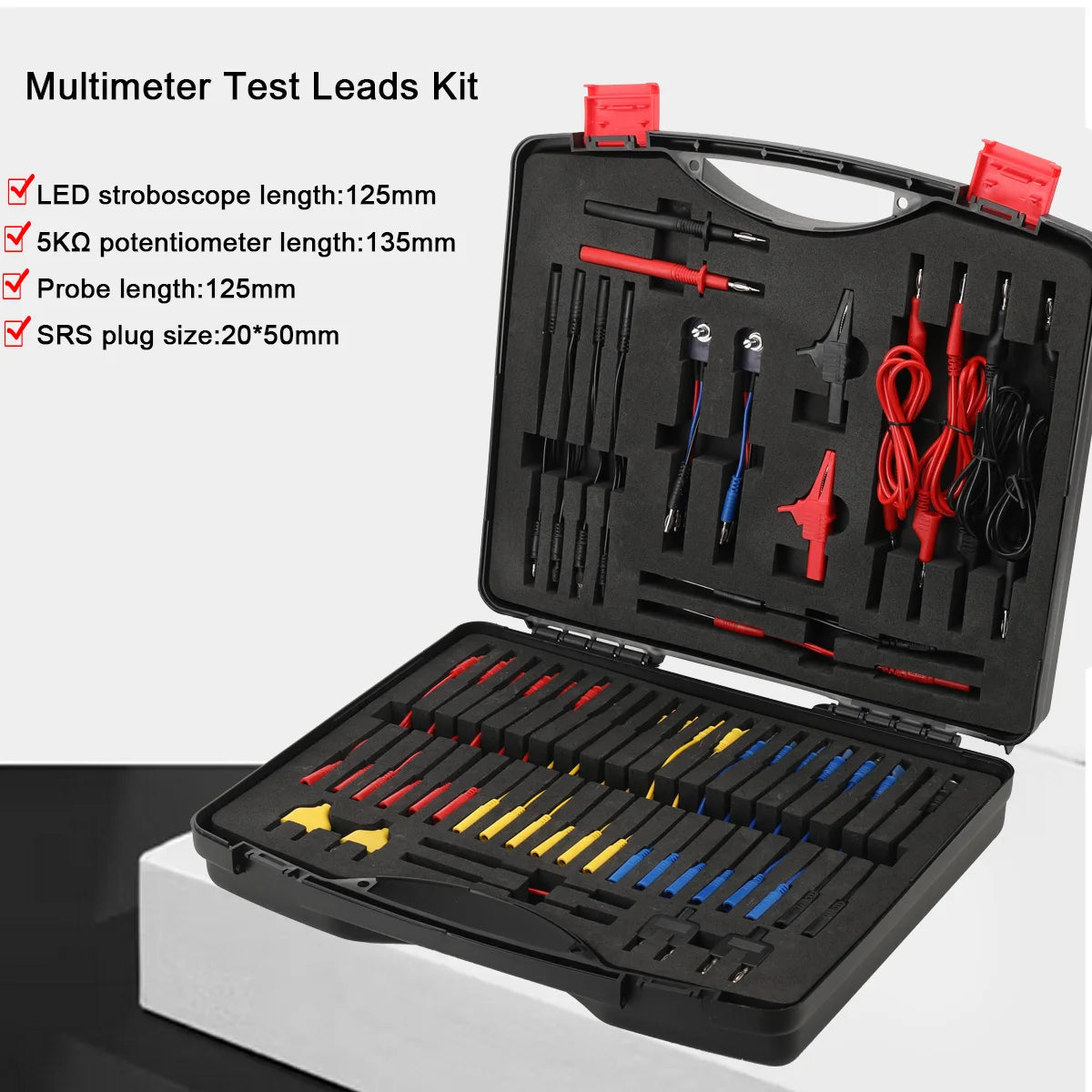

LED stroboscope length:125mm
5KΩ potentiometer length:135mm
Probe length:125mm
Alligator clip: 85mm length /30mm opening
SRS plug size:20*50mm
Portable case size:40*34*9.5cm/15.75"*13.39"*3.74"
Package size: 40*36.5*12.5cm
Package weight: 2.65kg

Package list:

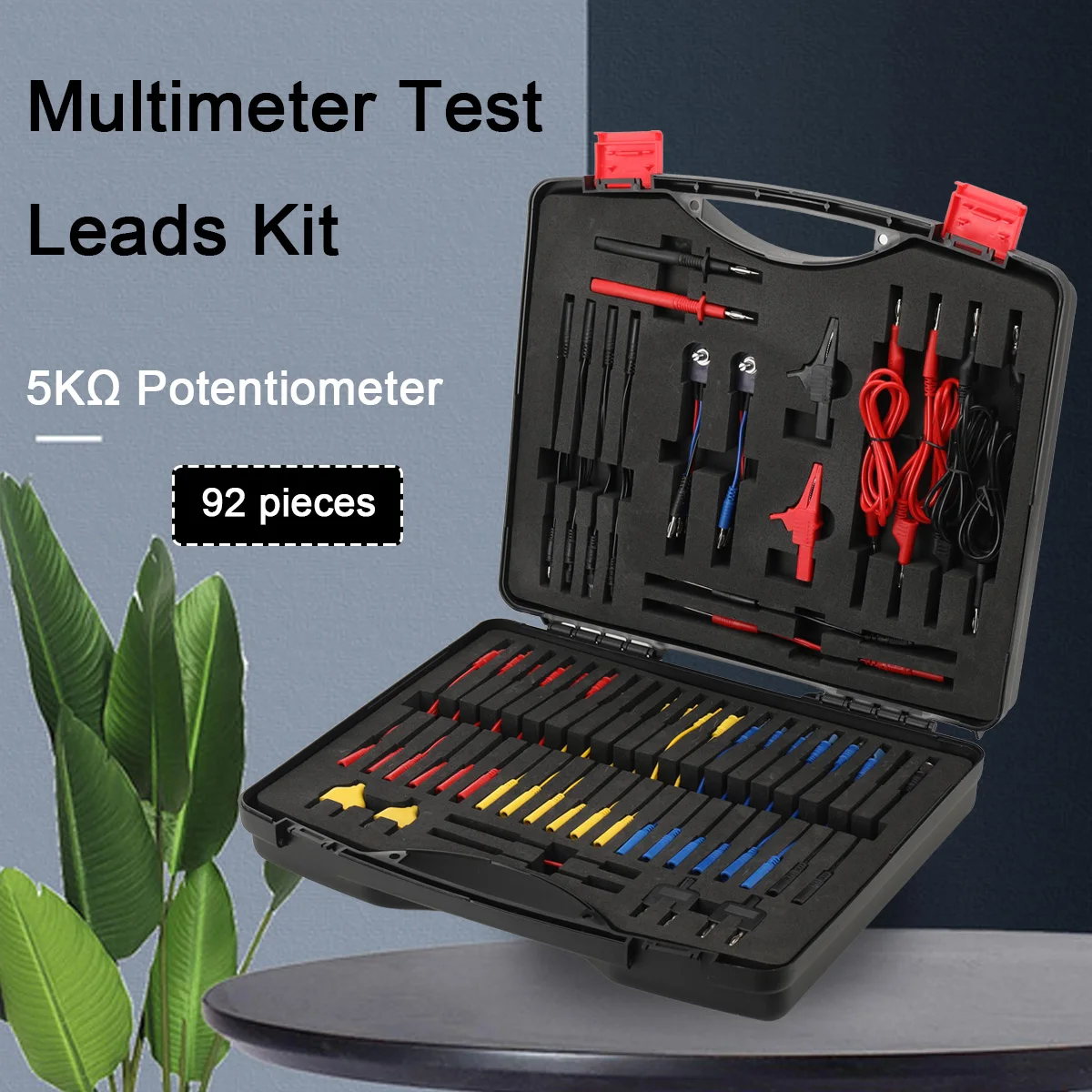

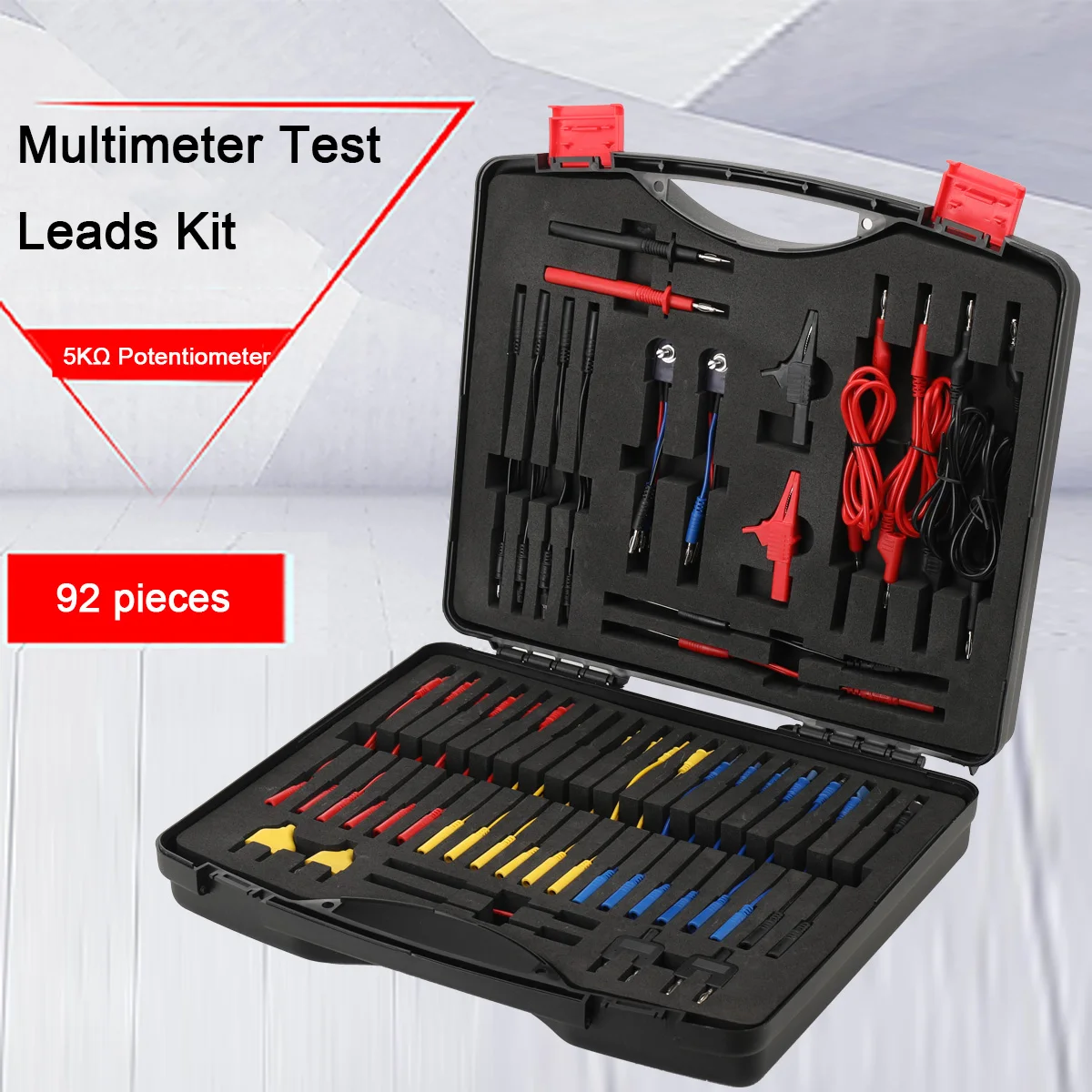

2 x 5KΩ Potentiometer (variable resistor)

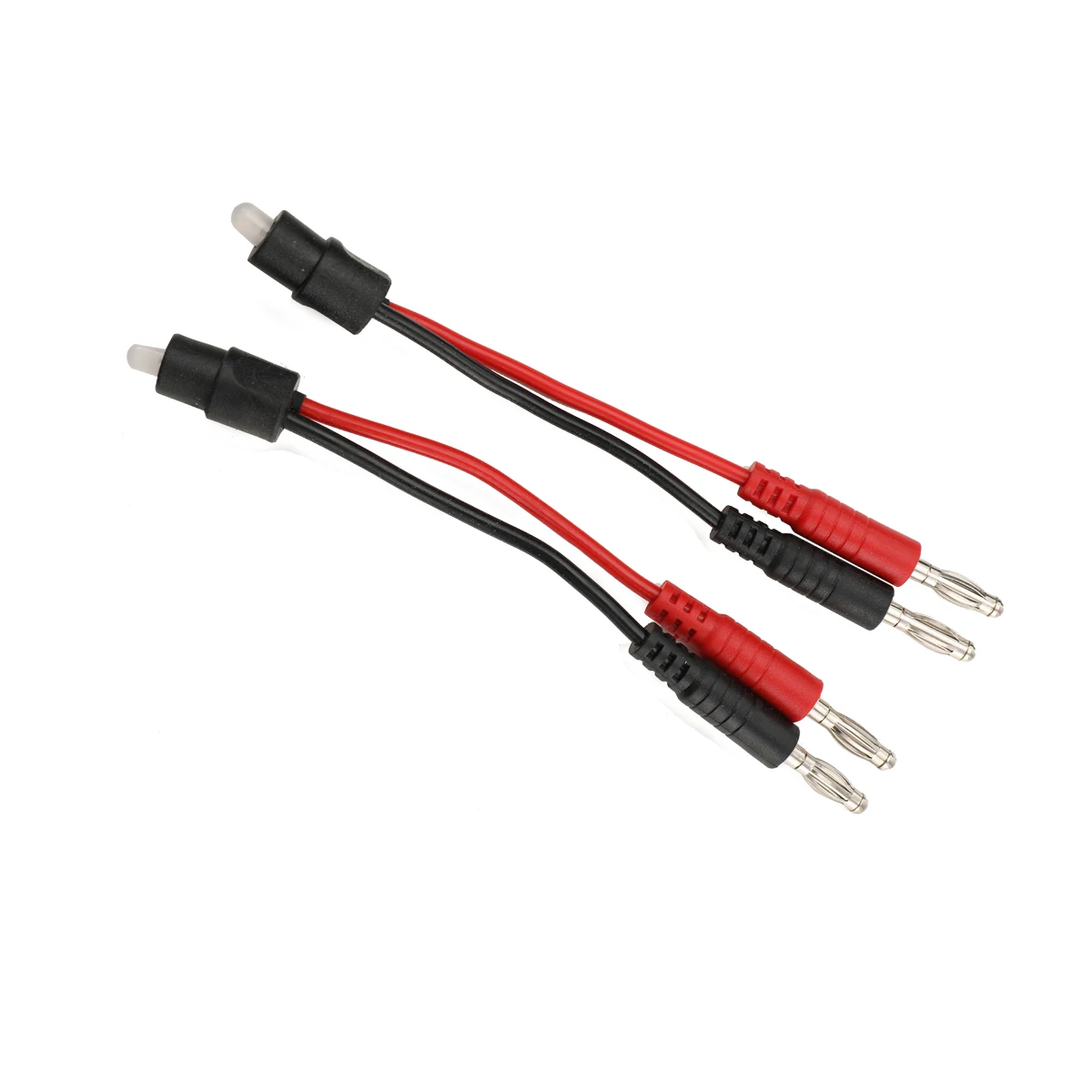

2 x LED strobe

48x Miscellaneous automotive flat terminals

4 x spindle probe

24x various automotive round terminals

2 x probe

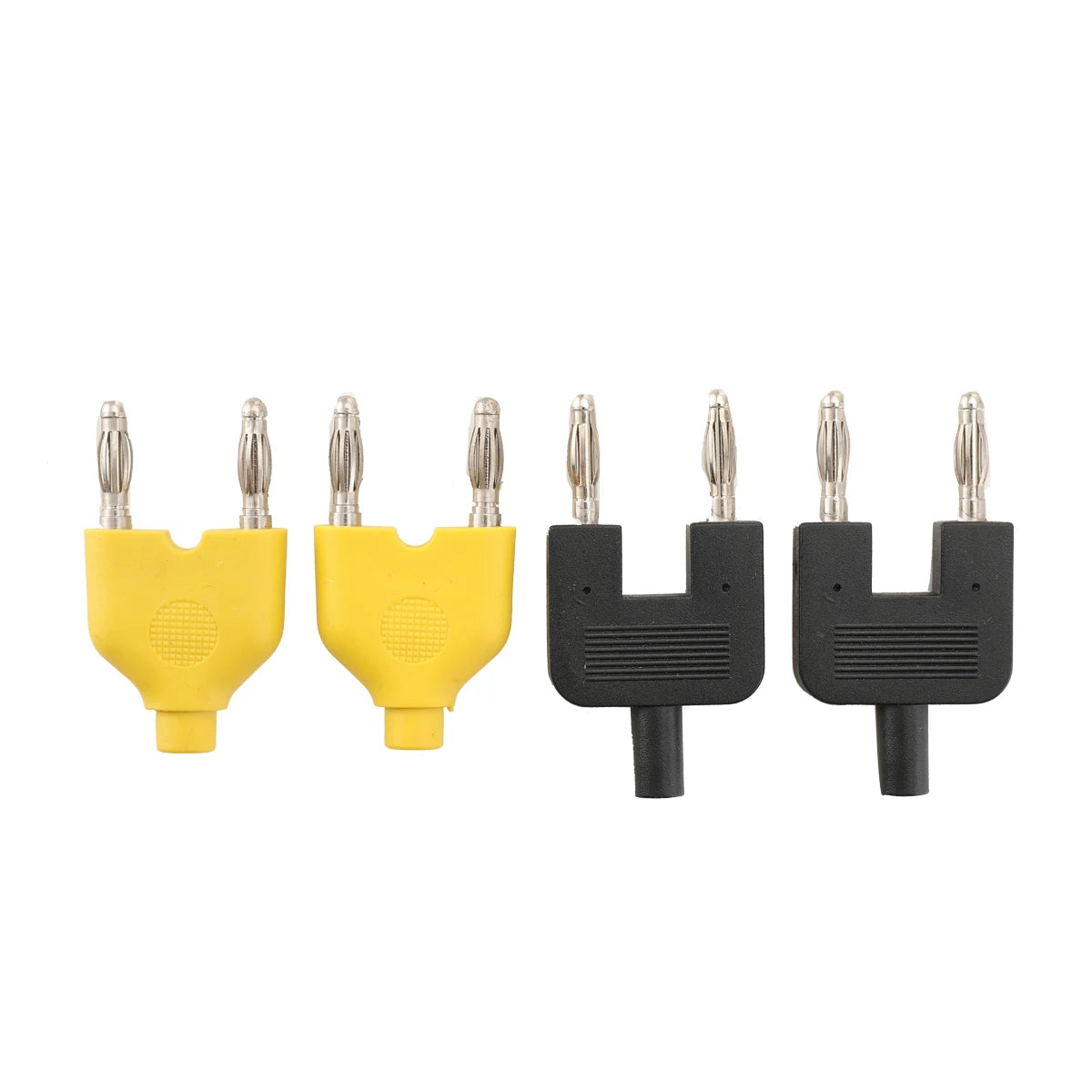

2 x plugs (1 to 2)

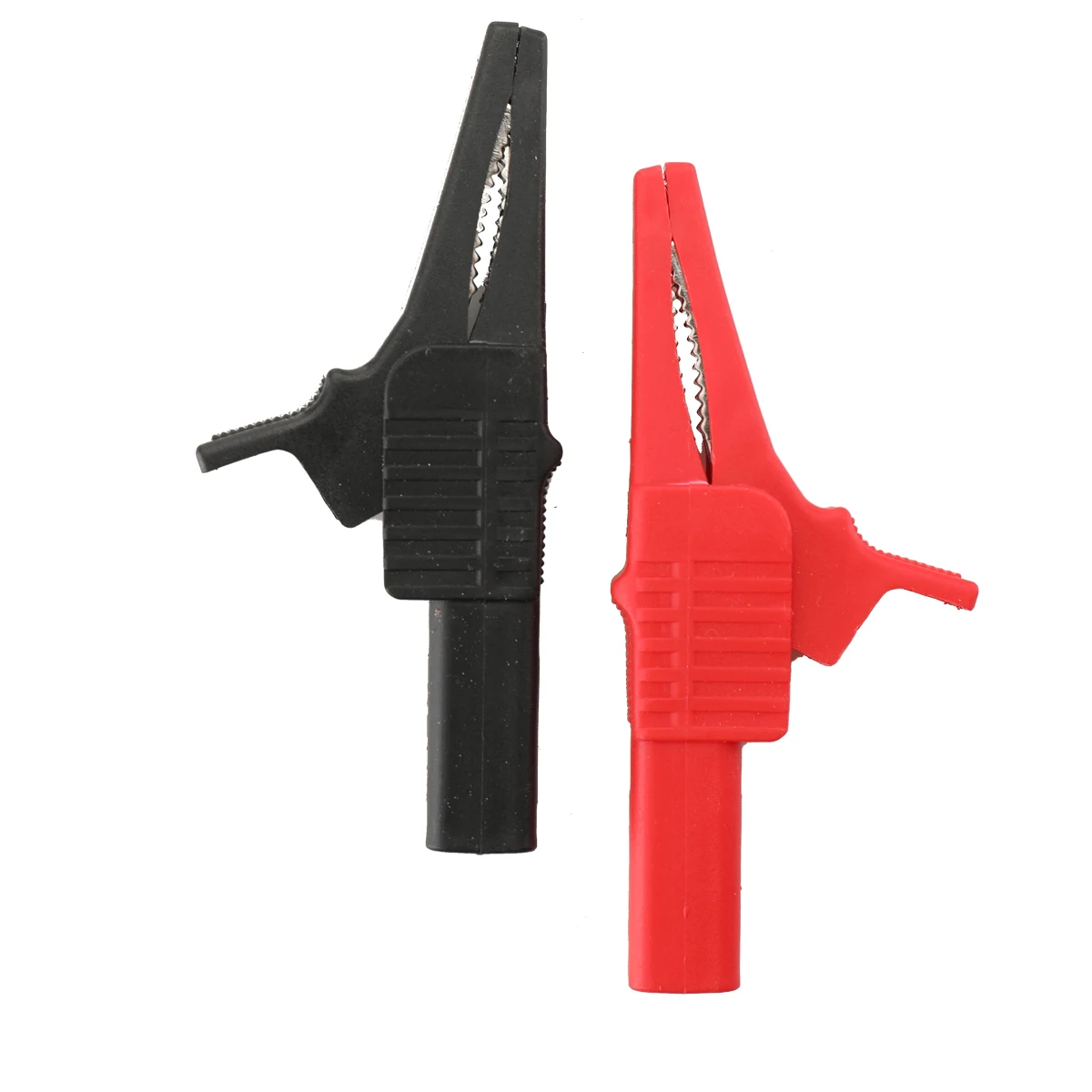

2 x alligator clip

4 x plugs (1 to 1)

2 x SRS plug
